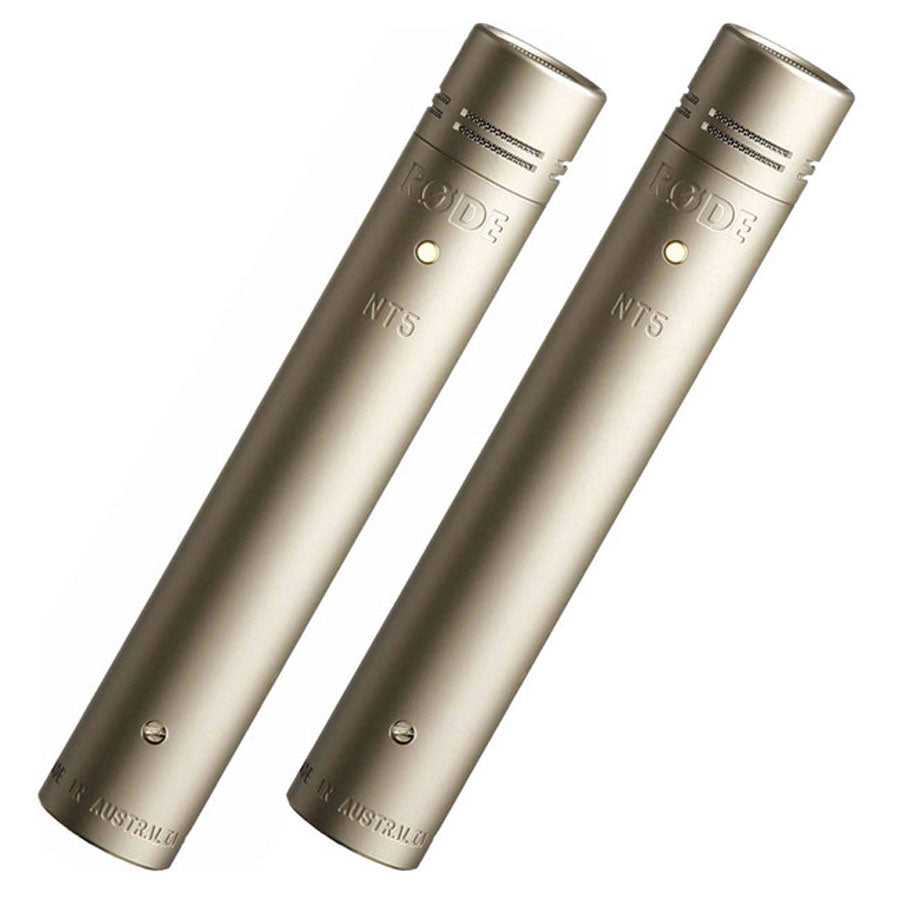

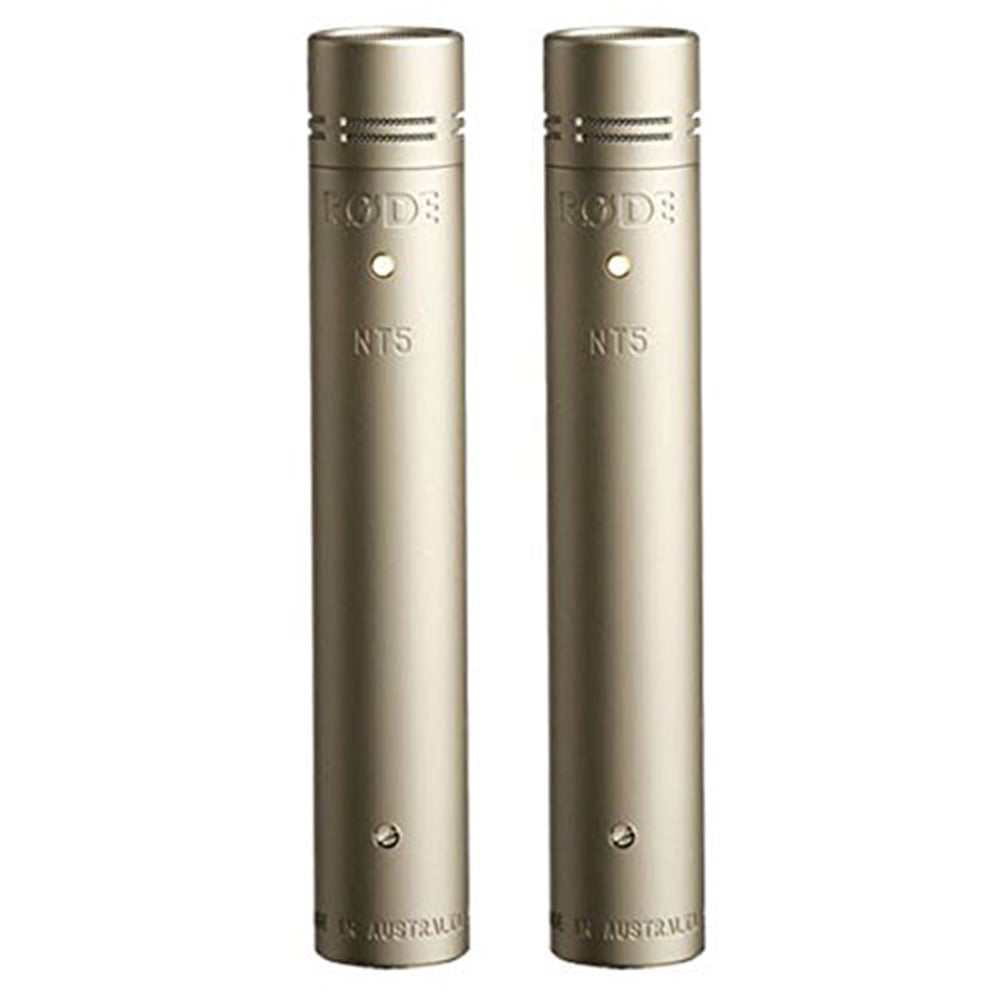

The NT5 is a premium small-diaphragm condenser microphone designed for critical recording applications. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule, it delivers a smooth, balanced sound with very low self-noise. Its exceptionally accurate cardioid polar pattern and wide frequency response make the NT5 ideal for recording everything from acoustic instruments to drum overheads and cymbals to live performances and dialogue on-location.
Expanding the NT5's versatility, an interchangeable omnidirectional capsule (NT45-O) is also available separately.
The NT5 is also available as a certified match pair for stereo recording.
Key Features:
- Premium small-diaphragm condenser microphone
- 1/2-inch gold-sputtered cardioid condenser capsule
- Very low self-noise
- Exceptionally accurate cardioid polar pattern and wide frequency response
- Available as a certified match pair for stereo recording
- 10-year warranty
What's in the Box
- 2 x NT5
- 1 x ZP1
- 2 x RM5
- 2 x WS5
Acoustic & Electrical
Active Electronics - JFET impedance converter with bipolar output buffer
Capsule - 0.50"
Polar Pattern - Cardioid
Address Type - End
Frequency Range - 20Hz - 20kHz
Output Impedance - 100Ω
Maximum SPL - 143dBSPL
Maximum Output Level - 13.9mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity, -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-Weighted) - 16dBA
Power Requirements - P24 and P48
Output Connection - XLR
Mechanical
Weight (g) - 101.00g
Dimensions (mm) - 118 (H) x 20 (W) x 20 (D)
