Rode Streamer X Audio Interface and Video Capture Card for Content Creators - Open Box

RODSTREAMERX_U

Regular price $399.00 Sale price $299.99
/

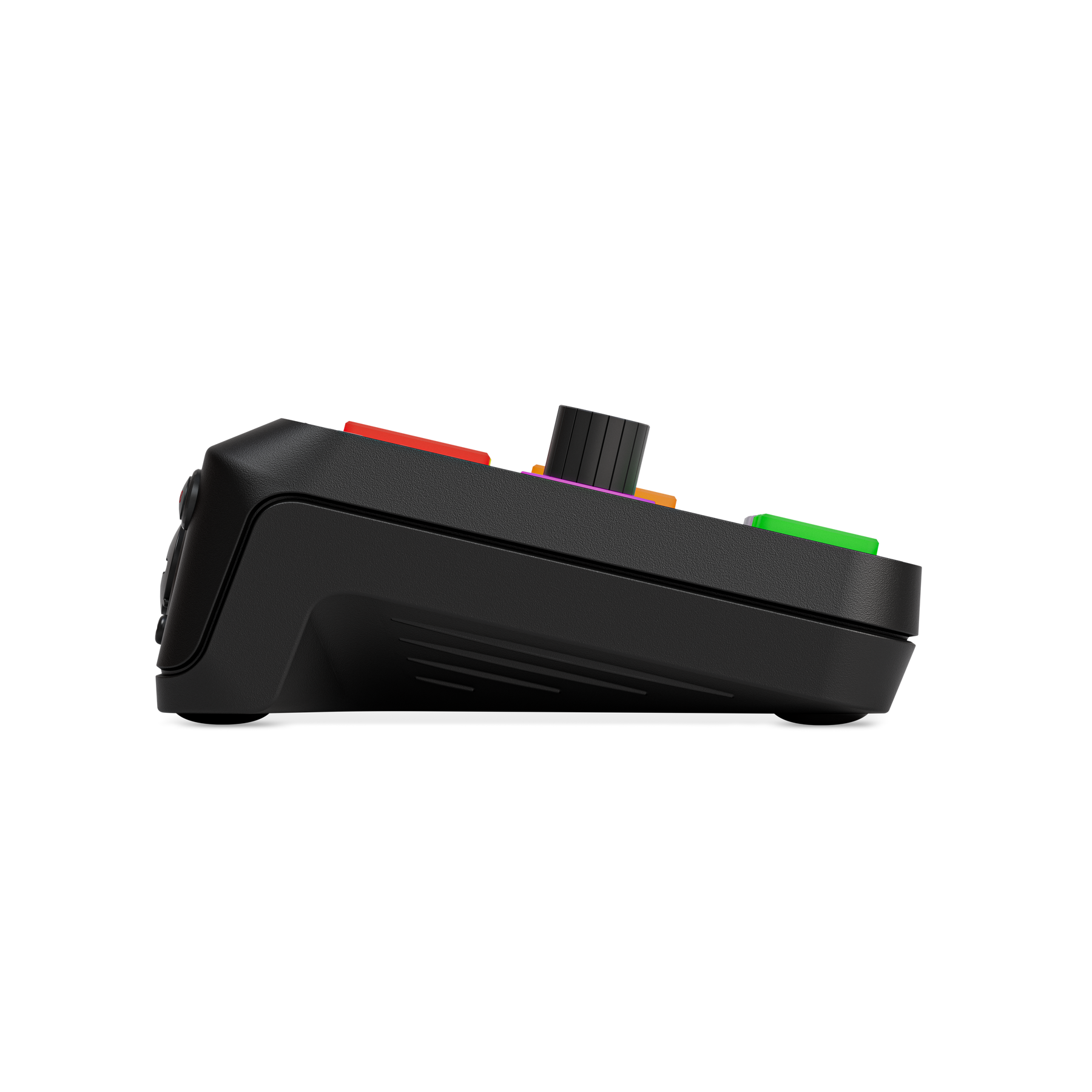

The Streamer X is a professional video capture card, audio interface and control surface integrated in one compact device that makes creating incredible content incredibly easy. It features studio-grade audio inputs for XLR microphones and instruments, headsets and RØDE wireless microphones, with an ultra-low-noise, high-gain Revolution Preamp™ and powerful APHEX® audio processing delivering pristine sound quality. HDMI connections offer up to 4K30 streaming and 4K60 pass-through for incredible video quality in a wide range of applications, from streaming and gaming, to podcasting and content creation, to business presentations. Dual USB-C connections seamlessly accommodate dual PC setups, and four fully customizable SMART pads allow for on-the-fly triggering of sound or voice FX and other actions on a computer. The ultimate all-in-one streaming solution.

Key Features:

  • Professional audio interface, video capture card and control surface integrated in one compact, easy-to-use device.
  • Up to 4K30 video capture and 4K60 pass-through via HDMI
  • Variable Refresh Rate (VRR) support
  • Neutrik® combo jack for connecting XLR microphones or instruments, with an ultra-low-noise, high-gain Revolution Preamp™ for pristine audio quality.
  • 3.5mm TRRS input for connecting headsets and 1/4-inch headphone output for zero-latency monitoring
  • Integrated wireless receiver for connecting RØDE Series IV wireless microphones, including the Wireless GO II and Wireless ME
  • Internal DSP for advanced audio processing powered by APHEX®

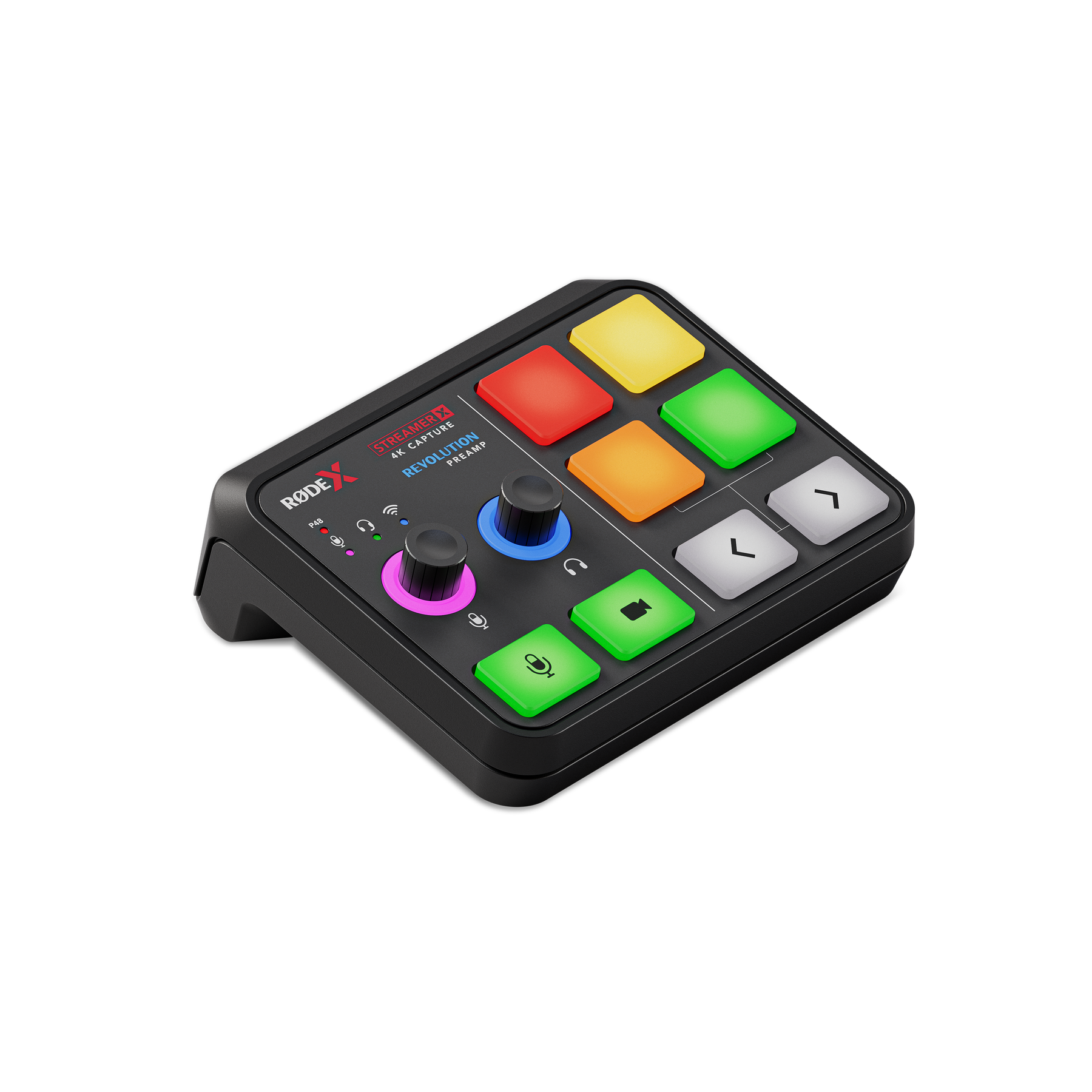

  • Four fully customisable SMART pads for triggering sounds, voice effects and MIDI commands
  • Dual USB-C interfaces for connecting to two computers or consoles
  • Easy configuration and control via RØDE Central desktop companion app
  • Compatible with free UNIFY streaming software for advanced audio routing, mixing and configuration
  • Designed and made in RØDE’s precision manufacturing facilities in Sydney, Australia

What's in the Box

  • 1 x Streamer X

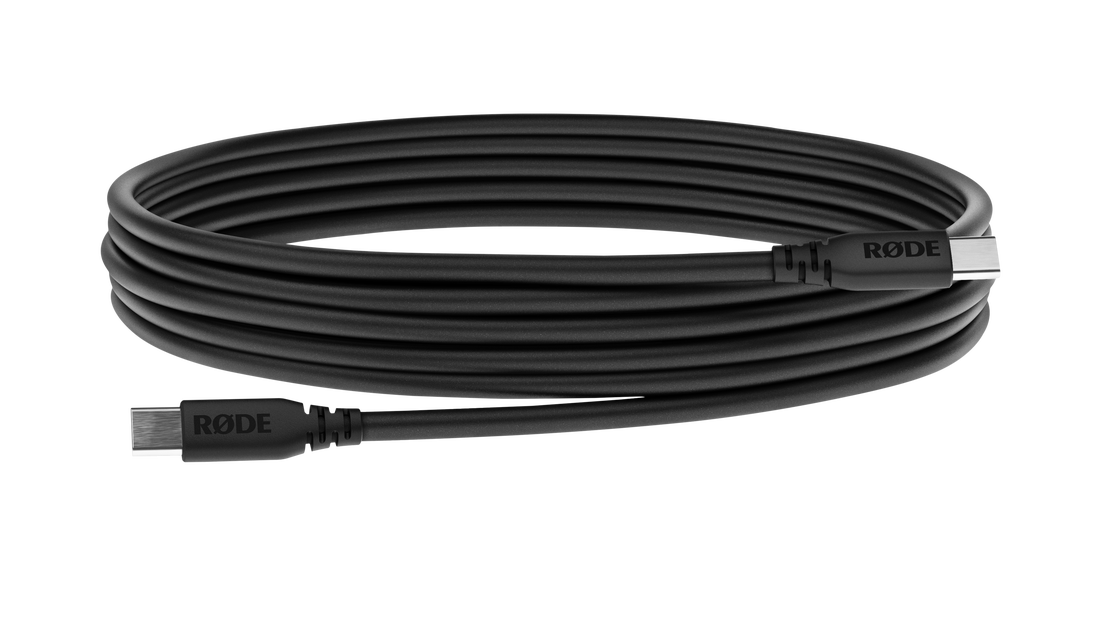

  • 1 x USB-C to USB-C Cable

Acoustic, Video & Electrical

Video Input Connectors - 1x HDMI Type A 2.0

Video Passthrough Output - 1x HDMI Type A 2.0

Max Input Resolutions (HDMI In)
  • 4Kp60 HDR
  • 1440p144 HDR
  • 1080p240 HDR
Variable Refresh Rate Support (VRR) - Yes

Max Capture Resolutions
  • 4Kp30
  • 1440p60
  • 1080p120
  • 1080p60 HDR

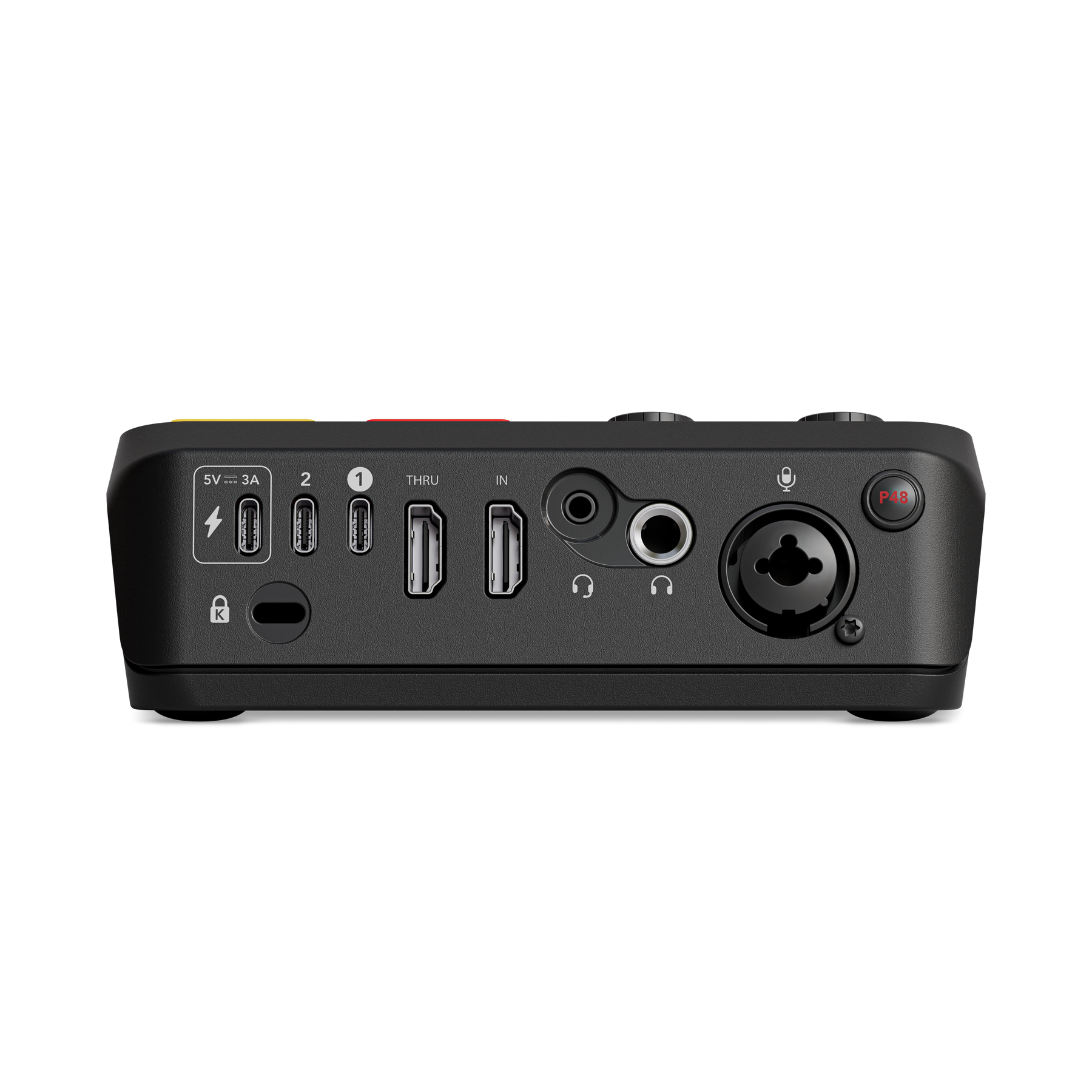

Audio Input Connectors
  • 1x XLR Combo Jack (Mic/Instrument)
  • 1x Wireless Receiver
  • 1x Input HDMI
Audio Output Connectors
  • 1x 3.5 TRRS Headset Jack (I/O)
  • 1x ¼" Headphone Jack
Input Dynamic Range - 113dB

Preamp Noise, -131.5dBV (A-weighted)

Frequency Range
  • Microphone Inputs: 20Hz-20kHz
  • Headphone Output: 20Hz-20kHz
Microphone Input Impedance (Ω) - 4KΩ

Instrument Input Impedance (Ω) -1MΩ

Preamplifier Gain Range 0-76dB

Phantom Power
Yes

Direct Monitor -Yes

Headphone Output Power -125mW per channel

Internal Storage (GB) -2GB (SMART Pads)

Power Requirements - Via USB: 5V @ 3A

Digital

USB Interface
  • USB 1: USB 3.1 type C
  • USB 2: USB 2.0 type C
Bit Depth - 24-bit

Sampling Rate (kHz) - 48kHz

Processing
  • APHEX Processing
  • RØDE Voice FX
Minimum OS Requirements

  • macOS 10.15 or later
  • Windows 10 Version 1803 or later
  • Windows 11

Mechanical

Weight (grams) - 380g
Dimensions (millimeters)
  • Length: 144mm
  • Width: 122mm
  • Height: 51mm
